House plans / Barn 28
BarnReal photos
Barn 28
Tiny barn cabin / backyard studio
| Heated area | 27 m² (289 sq ft) |
| Footprint | 3.9 × 6.9 m (12'9" × 22'8") |
| Layout | 1 bedroom · 1 bath · terrace |
| Design set | 24 sheets · 24 renders |
| Units | Metric + imperial (ft-in) |
| Plan code | G40 |
| PDF design set | $49 |
| PDF + DWG/model files | $59 |
| Builder licence | from $149 · details |
Photos of a real house built from this plan are below.
Plans, sections and details
Built from this plan
What you get

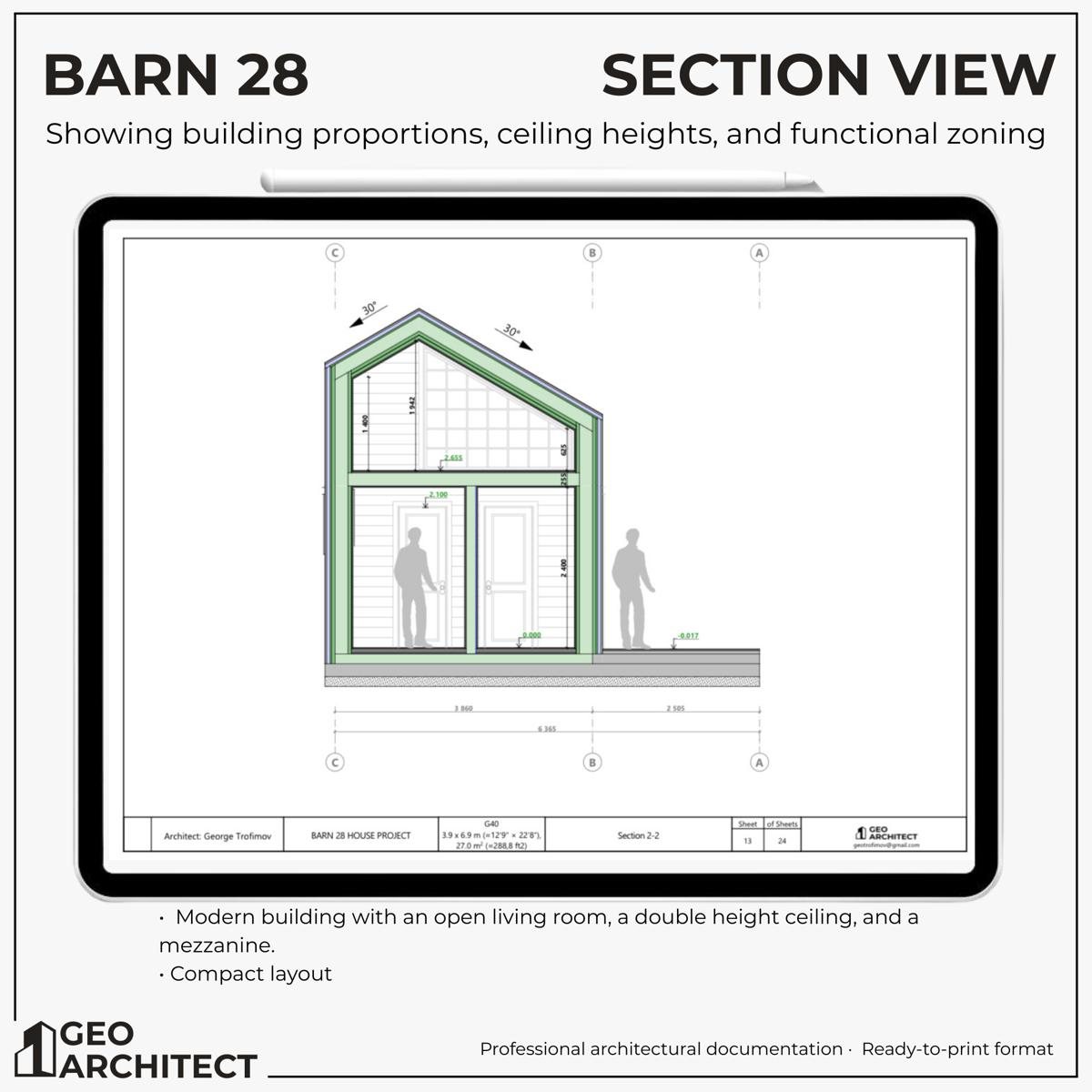

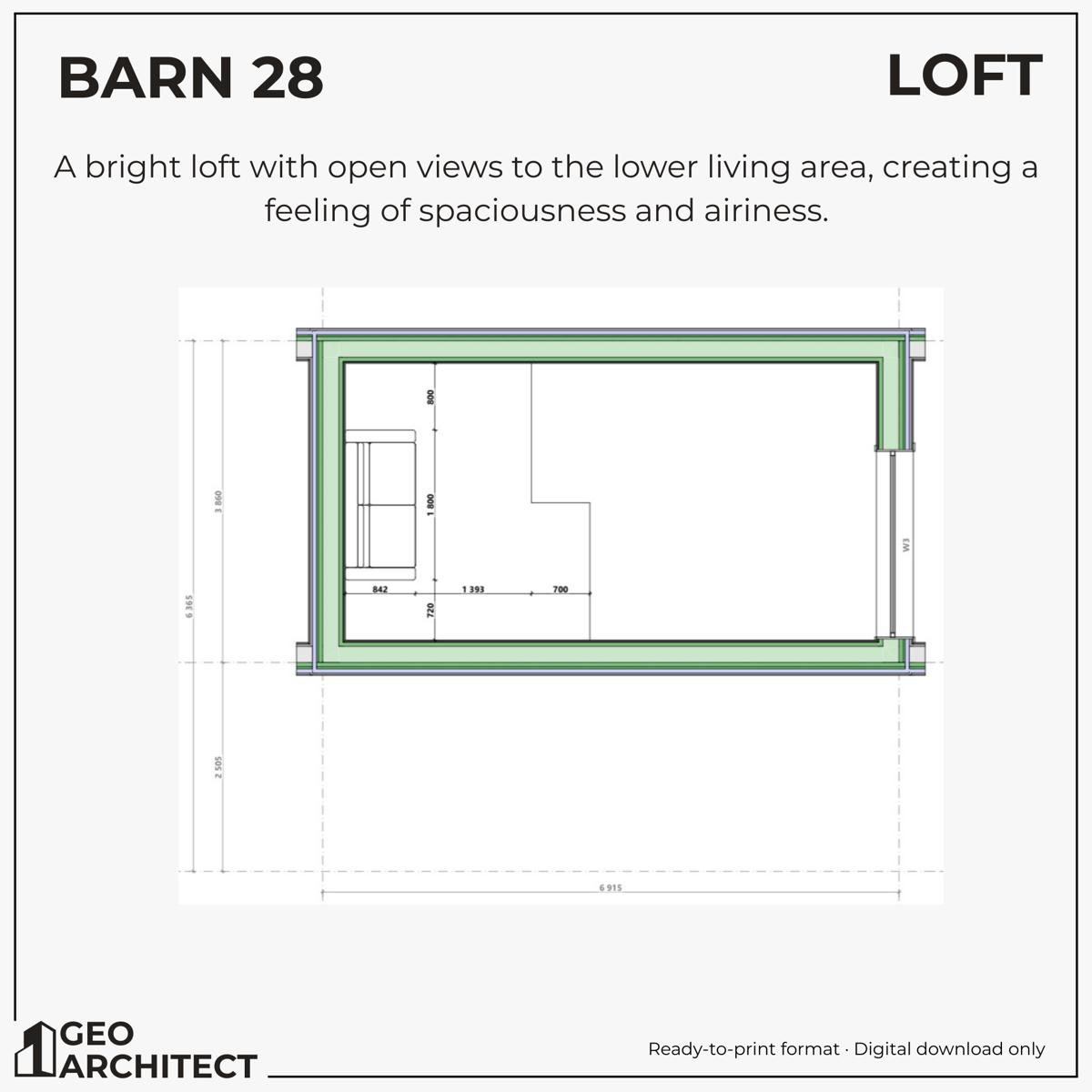

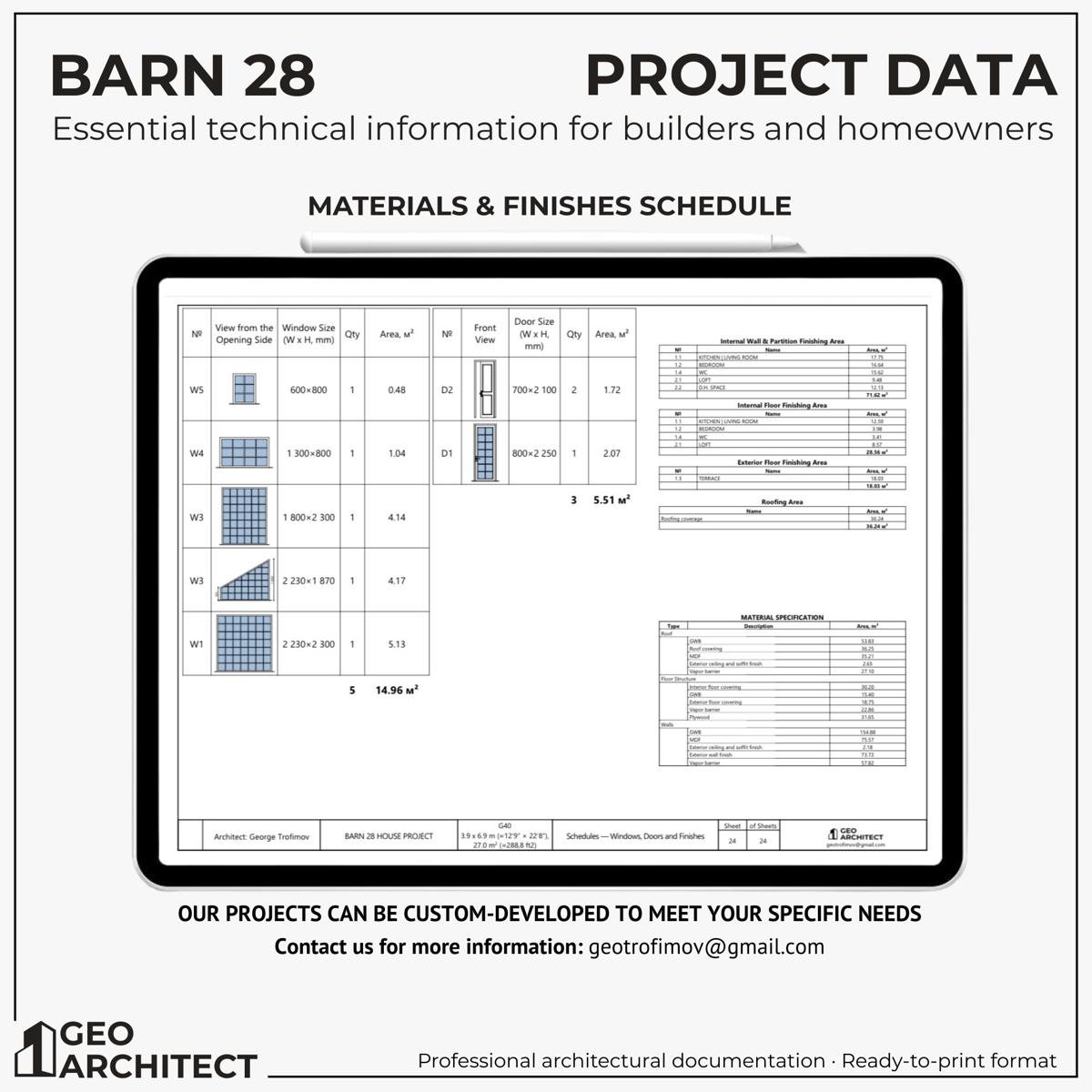

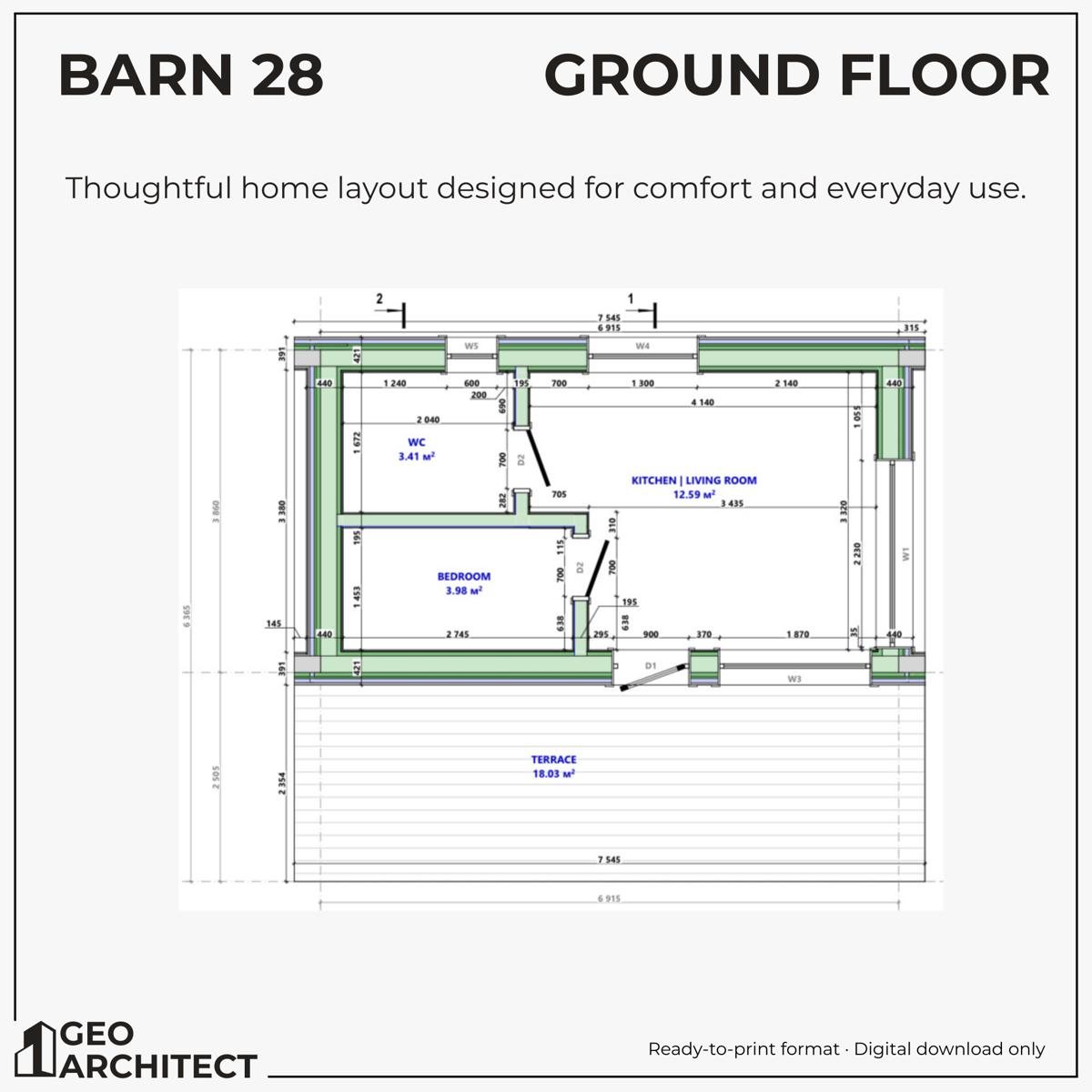

- Design set (PDF): floor plans, roof plan, sections, four elevations, 3D views, window and door schedules
- Metric drawings; imperial (feet and inches) on request
- Renders for presentation
- DWG and model files with the builder licence
This is a concept design set, not construction drawings. Not included: structural drawings and engineering, foundation design for your soil, MEP, energy calculations or permit documents. A local licensed professional must review and adapt the plan before construction. Sold for one build.
